產品介紹：
用途：
本產品主要用作交流額定電壓為500V及以下的冰箱、壓縮機、風力發電等電機繞組引接線。具有良好的耐制冷劑、耐溶劑和耐環境應力等特性。
Usage:
This product is mainly used as the rated voltage is 500V and below the refrigerator, compressor, motor winding connection of wind power. Has a good resistance to refrigerants,solvent resistance and resistance to environmental stress and other characteristics.
耐氟利昂電機繞組引接軟線
Freon resistant motor winding connection soft wire
執行標準 standard：JB/T 6213.5-2006

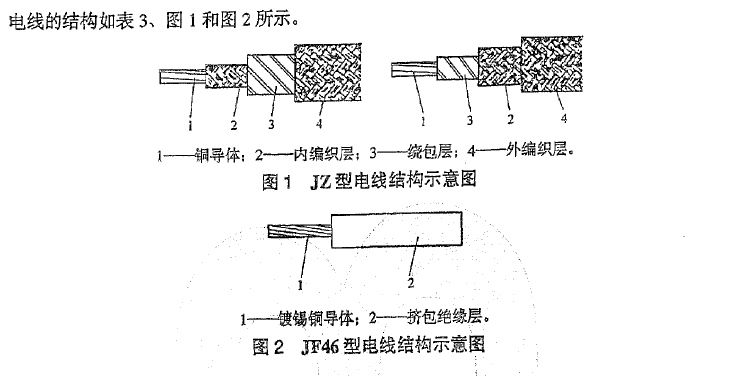

型號 type 名稱 name
JZ 聚酯絕緣耐氟利昂電機繞組引接軟線
Polyester insulation resistance to freon motor winding connection soft wire
JF46 聚全氟乙丙烯絕緣耐氟利昂電機繞組引接軟線
Poly-fluorinated ethylene propylene freon motor winding resistance soft wire
使用特性
額定電壓：交流500V
JZ型電纜（電線）的連續運行導體溫度為：120℃
JF46型電纜（電線）的連續運行導體溫度為：200℃
電纜敷設時允許彎曲半徑不小于電纜外徑的4倍。
Features:
related voltage:AC 500V
The continuous operating temperature of JZ type cable（wire) is 120℃
The continuous operating temperature of JF46 type cable (wire) is 200℃
The bending radius is not be less than 4 times of the cable when installation
JZ、JF46電纜產品參數表
JZ 、JF46 type cable parameter
|
標稱截面積 mm2 Nominal section area |
絕緣標稱厚度 Mm Nominal thickness |
平均外徑上限 Mm Upper limit OD |
||
|
JZ |
JF46 |
JZ |
JF46 |
|
|
0.5 |
0.45 |
0.4 |
1.90 |
1.80 |
|
0.75 |
0.45 |
0.4 |
2.10 |
2.00 |
|
1 |
0.45 |
0.4 |
2.30 |
2.20 |
|
1.25 |
0.45 |
0.4 |
2.45 |
2.30 |
|
1.5 |
0.60 |
0.4 |
2.90 |
2.45 |
|
2 |
0.60 |
0.5 |
3.10 |
3.00 |
|
2.5 |
0.60 |
0.5 |
3.30 |
3.10 |
